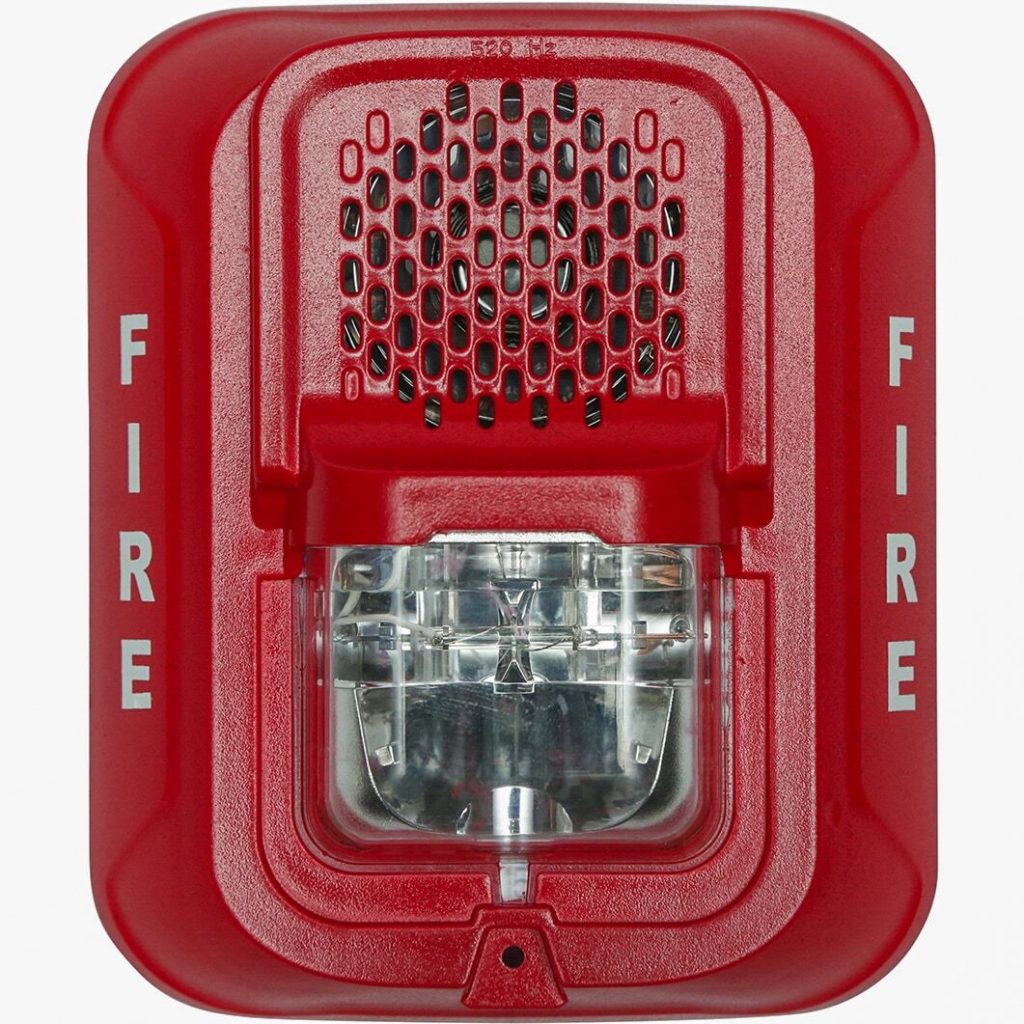

General
The standard horns, strobes, and horn strobes shall mount to a standard 2 x 4 x 1 7/8-inch back box, 4 × 4 × 1½-inch back box,4-inch octagon back
box, or double-gang back box. A universal mounting plate shall be used for mounting ceiling and wall products for all standard models. The notification appliance circuit wiring shall terminate at the universal mounting plate. Also, when used with the Sync •Circuit™ Module accessory, shall be
powered from a noncodednotification appliance circuit output and shall operate on a nominal 12 or 24 volts. When used with the Sync •Circuit
Module, 12-volt-rated notification appliance circuit outputs shall operate between 8.5 and 17.5 volts; 24 volt rated notification appliance circuit
outputs shall operate between 16.5 and 33 volts. Indoor products shall operate between 32 and 120 degrees Fahrenheit from a regulated DC or
full-wave rectified unfiltered power supply. Strobes and horn strobes shall have field-selectable candela settings including 15, 30, 75, 95, 110, 135,
and 185.
Features
• Updated Modern
Aesthetics
• Offers small profile
devices for horns and
horn strobes
• Color lens
attachments for use
with clear lens wall or
ceiling strobe
• Designed with
tamper-resistant
construction
• Meets DoD
specification
requirements
• Features a plug-in
design with minimal
intrusion into the back
box
• Horn rated at 88+ dBA
at 16 volts
• Supports rotary switch
for horn tone and two
volume selections
• Automatic selection of
12- or 24-volt
operation at 15 and 30
candela
• Uses field-selectable
candela settings on
wall units: 15, 30, 75,
95, 110, 135, 185
• Mounting plate for all
standard and all
compact wall units
• Mounting plate
shorting spring checks
wiring continuity
before device
installation
• Supports electrically
compatible with
existing SpectrAlert
and SpectAlert
Advance devices
• Compatible with
System Sensor
synchronization
protocol
• Listed for wall
mounting only
